Access control and intercom

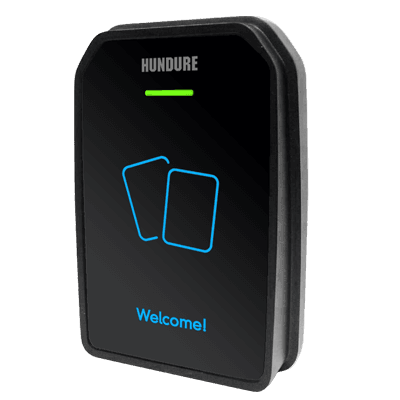

HUNDURE PXR-A1(K) Generic / Keypad Reader
Read Format EM (125 KHz) or MIFARE® (13.56 MHz), Ingress Protection IP66 (PXR-A1MWS-WR / PXR-A1EWS-WR), Power Input DC 12V / 1A
Specifications
Specifications as published by the manufacturer.
- Card formats
- EM (125 KHz) 或MIFARE® (13.56 MHz)
- Communication interfaces
- Wiegand / RS-485 (詳細內容請見訂購資訊)
- Inputs
- 1組數位偵測輸入(防拆機偵測 x1)
- Ingress protection rating
- IP66 (PXR-A1MWS-WR / PXR-A1EWS-WR)
- Power input
- DC 12V / 1A
- Current consumption
- 200mA (max.)
- Operating temperature
- -20° C~70° C / -4° F ~ 158° F
- Relative humidity
- 20% ~ 80% (在不凝結成水滴的狀態下)
- Dimensions
- 120mm(L) x 80mm(W) x 27mm(H)
Product information
- PXR-A1MW
- 支援Wiegand，MIFARE®(13.56MHz) 讀卡機
- PXR-A1MS
- 支援RS-485，MIFARE®(13.56MHz) 讀卡機
- PXR-A1MWK
- 支援Wiegand，MIFARE®(13.56MHz) 按鍵式讀卡機
- PXR-A1MSK
- 支援RS-485，MIFARE®(13.56MHz) 按鍵式讀卡機
- PXR-A1MWS-WR
- IP66，支援Wiegand和RS-485，MIFARE®(13.56MHz) 讀卡機
- PXR-A1EWS-WR
- IP66，支援Wiegand和RS-485，EM(125 MHz) 讀卡機
