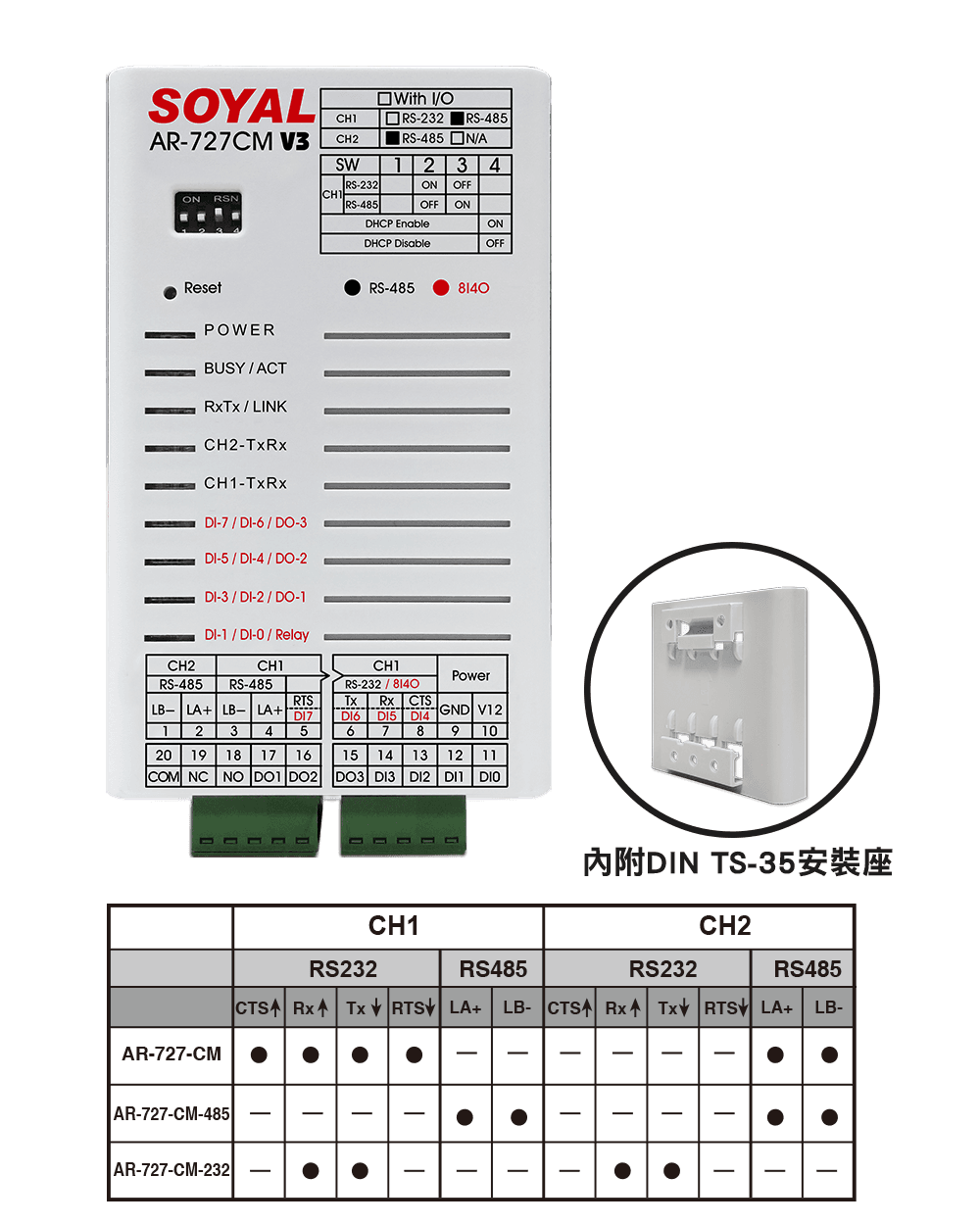

SOYAL AR-727-CM-485 Serial-to-Ethernet Server&Modbus RTU Over TCP
9-24 VDC, size 106.5(H)x66(W)x27.7(D)
AR-727-CM-485 specifications
Specifications as published by the manufacturer.
- Interfaces
- 10/100 Mbps BaseT Ethernet <--> RS485
- Transmission rate
- 4800 bps - 115200 bps
- Communication protocol
- ARP, IP,TCP Client,UDP, ICMP,HTTP,DHCP,NetBIOS
- Serial data buffer
- 每個通道1K
- LED indicators
- 9 LED 指示燈 顯示電源, 通訊
- Self-monitoring anti-hang protection
- Yes
- Effective range
- 300m~1200m (RS485)
- Surge protection
- Power: 30 Volt, bi-directional avalanche breakdown device.、RS485 6.5 Volt, bi-directionalavalanche breakdown device.、400W peak power dissipation.、Clamping time < 1 picosecond(theoretical)
- Resettable fuse
- Power PTC 150mA , RS485 PTC 30mA
- Optical isolation withstand voltage
- Optical 5 kV
- Operating voltage
- 9-24 VDC
- Power consumption
- <2W
- Dimensions (mm)
- 106.5(H)x66(W)x27.7(D)
- Net weight (g)
- 約90
- Operating system
- Windows 7/8/10, Win Server 2008/2012/2016
- Networking / device configuration
- HTTP網頁管理介面 / UDP Updater改IP
- Operating temperature
- -20℃ ~ +70℃
